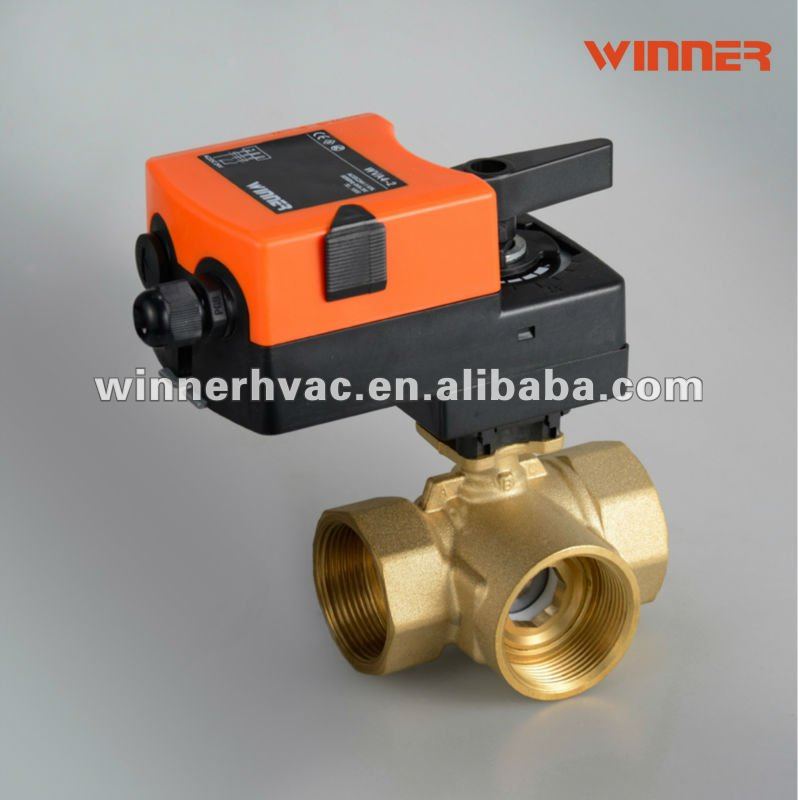

motorized brass ball valves,3-way brass motorized ball valve

motorized brass ball valves,3-way brass motorized ball valve

FOB Price:
Min.Order Quantity:
10 Set/Sets
Supply Ability:
1800 Set/Sets per Week
Port:
Changsha
Place of Origin:
Hunan, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
WINNER
Products Model:
WVA4-304/06/10
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: WINNER

    Model Number: WVA4-304/06/10

    Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

  • Packaging Details: 57 untis per carton, size:0.05CBM/CTN
  • Delivery Detail: within 7 days after payment

Specifications

   Contacts: Mrs Vivian

   Mobile:+86 13677320684



The products can widely used in the controlling system to control the temperature, pressure, flow and so on.



Description:

Modle No. Voltage Control way Output torque Power consumption Matching valve
WVA4-304 24VAC/DC 0-10v 4N.m 6VA W8BV215, W8BV220, W8BV225, W8BV315, W8BV320, W8BV325  WCBS215, WCBS220, WCBS225, WCBS315, WCBS320, WCBS325
WCBV215, WCBV220, WCBV225, WCBV315, WCBSV20, WCBV325
WVA4-306 24VAC/DC 0-10v/4-20ma 6N.m 6VA WCBS232, WCBS240, WCBS250, WCBS332, WCBS340, WCBS350
WCBV232, WCBV240, WCBV250, WCBV332, WCBSV340, WCBV350
WVA4-310 24VAC/DC 0-10v/4-20ma 10N.m 6VA WCBS250, WCBS350
WCBV250, WCBV350



Specifications:

    1. Power supply: 24VAC/DC
    2. Output torque: 4N.m, 6N.m, 10N.m
  •  Power consumption:  6VA

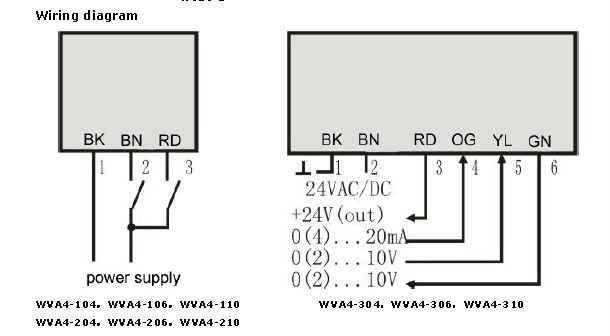

  • Control way: 0-10v
  • Pipe connection: G/BSP
  • Media temperature range: 2°C~90°C
  • Ambient temperature: -5°C~50°C
  • Ambient humidity: <90%
  • Pressure grade:  PN20
  • Protect rank:  IP54

Application
HVAC system
Heating system
Water treatment system
Industrial equipments



Technical data
Valve body:
Medium: cold/hot water, with 50% glycol

Temperature of medium: 2°C...90°C
Rated pressure: PN16

Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%

RH Size: 3/4’’ -2’’

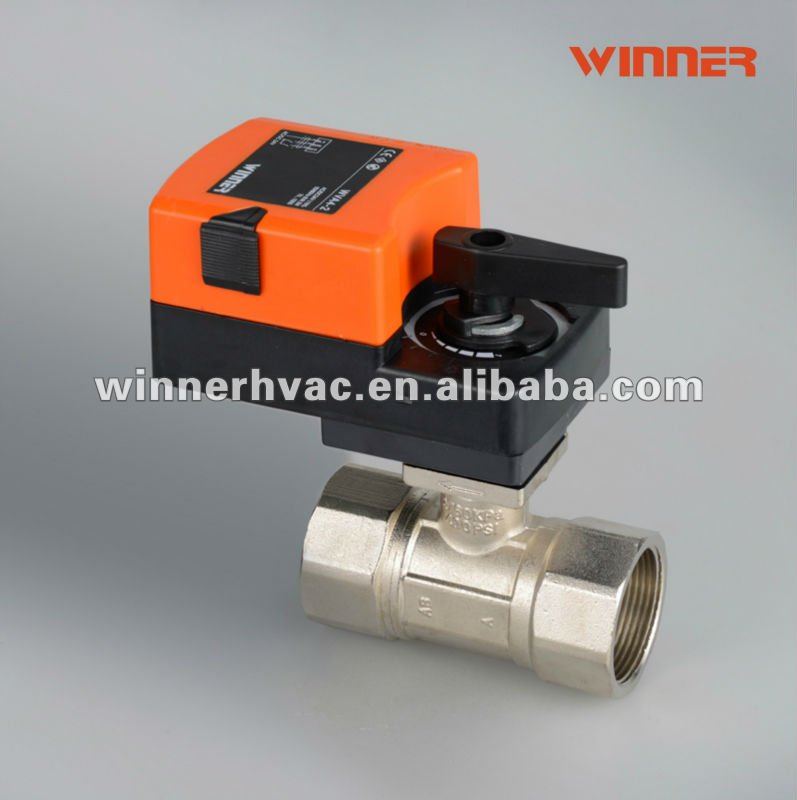

Valve type: 2-way and 3-way

Flow characteristic: equal percentage, on/off
Material
Valve body: forged brass, Hpb59-1

Seal: ball: EPDM+PTFE
Ball: stainless steel

brass stem: EPDM

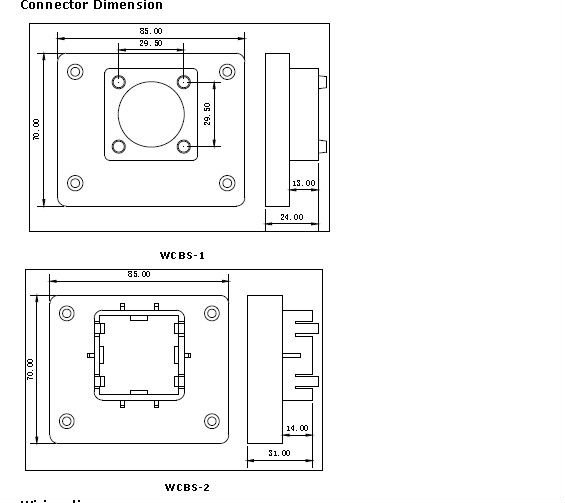

Valve connector: PC

Valve spindle: aluminum alloy
